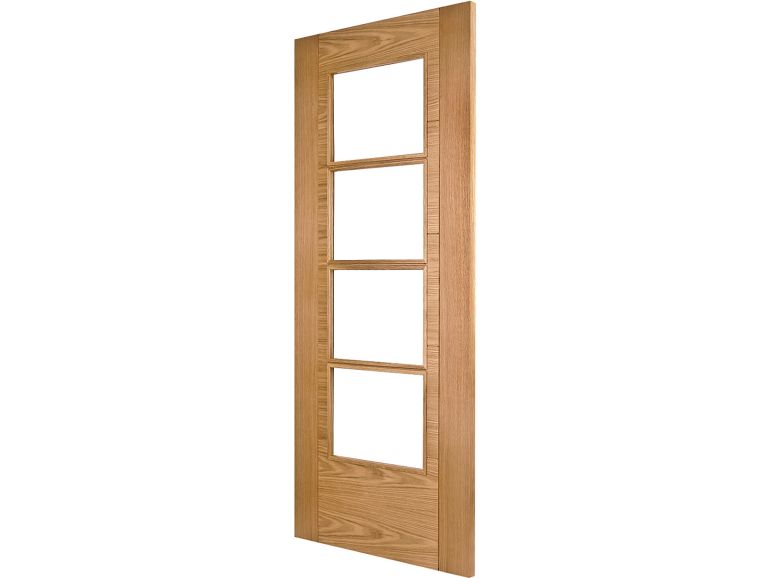

Iseo K4514 Oak 4-Light Fire Door (FD30 - Made to Measure)
Our Iseo KFC4514 Oak fully glazed Fire-rated (FD30) doors are beautifully finished with a clear satin lacquer that shows the beauty of the American White Oak veneer and solid timber glazing detail.... Read More
Fire
Pre-finished
Bespoke sizes
Colour:
-
Walnut -
White
✕
POPULAR INTERNAL DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 381 | 6'6" x 1'3" | 78" x 15" |
| 1981 x 457 | 6'6" x 1'6" | 78" x 18" |
| 1981 x 533 | 6'6" x 1'9" | 78" x 21" |
| 1981 x 610 | 6'6" x 2'0" | 78" x 24" |
| 1981 x 686 | 6'6" x 2'3" | 78" x 27" |
| 1981 x 711 | 6'6" x 2'4" | 78" x 28" |
| 1981 x 762 | 6'6" x 2'6" | 78" x 30" |
| 2032 x 813 | 6'8" x 2'8" | 80" x 32" |
| 1981 x 838 | 6'6" x 2'9" | 78" x 33" |
| 1981 x 864 | 6'6" x 2'10" | 78" x 34" |
| 1981 x 915 | 6'6" x 3'10" | 78" x 36" |
| 2040 x 526 | 6'8 1/4" x 1'8 11/15" | 80" 1/4 x 20" 11/16 |
| 2040 x 626 | 6'8 1/4" x 2'0 1/8" | 80" 1/4 x 24" 5/8 |
| 2040 x 726 | 6'8 1/4" x 2'4 3/8" | 80" 1/4 x 28" 5/8 |
| 2040 x 826 | 6'8 1/4" x 2'8 1/2" | 80" 1/4 x 32" 1/2 |
| 2040 x 926 | 6'8 1/4" x 3'0 1/16" | 80" 1/4 x 36" 7/15 |
POPULAR PAIR OF DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 1067 | 6'6" x 3'6" | 78" x 42" |
| 1981 x 1168 | 6'6" x 3'10" | 78" x 46" |
| 1981 x 1220 | 6'6" x 4'0" | 78" x 48" |
| 1981 x 1372 | 6'6" x 4'6" | 78" x 54" |
| 1981 x 1524 | 6'6" x 5'0" | 78" x 60" |
Our Iseo KFC4514 Oak fully glazed Fire-rated (FD30) doors are beautifully finished with a clear satin lacquer that shows the beauty of the American White Oak veneer and solid timber glazing detail. The glass is clear flat Fire-rated as standard, it is worth noting this is unlike the non-fire rated doors which are bevelled. Veneered over a solid composite core to create an incredibly stable product, coupled with terrific attention to detail. When selecting veneers, the quality of this Oak door we believe exceeds others that our available in the wider market - note that only our doors come in Todd Doors branded boxes.
- Contemporary style door for modern homes.
- Door features v-groove detail into solid Oak inserts.
- Door is veneered with American White Oak which is then Pre-finished in a clear lacquer.
- Factory glazed with clear flat fire-rated glass as standard.
- Solid core, engineered construction giving a substantial feel.
- Fire-rated to give 30 minute protection (FD30) when fitted in accordance with Test Certificate.
- Can be made up to a maximum of 2134 x 926mm.
- Leadtime is typically 5 months from final factory sign-off.
| Product Code | KFC4514_OAKPGL |
|---|---|
| Fire Door | Yes - FD30 |
| Door Thickness | 44mm - FD30 |
| Door Finish | Pre-Finished |
| Door Face | Lacquered Oak |
| Door Style | Contemporary, Ladder |
| Door Type | Grooved |
| Glass Type | Clear Flat Fire Rated Glass |
| Glazing Style | Full Glazed, Clear Glass |
| Door Features | Raised Hockey Stick Glazing Bead |
| Door Construction | Fire Rated Super Heavyweight Solid Core |
| Hinge Requirement | 3 no. 4" Hinges |
| Average Weight | 38 KG (Based on 1981 x 762mm) |
| Door Location | Internal Use Only |
| Availability | Made to Order: 5 Months |
| Product Brand | Select Product Brands |
| Trimming Allowance | To maintain the integrity of this door you may trim up to 3mm off each edge, up to 3mm off the top and up to 3mm off the bottom*. Trimming beyond this amount will invalidate this doors fire certification. |
| Trimming Note | In trimming any part of this door you will need to re-seal the exposed edges. In trimming the height the core may become exposed. Please contact a Door Expert about the appropriate finishes available for this door. |
| Guarantee | All internal doors are supplied with a Lifetime Guarantee against defects in materials and workmanship along with a one-year guarantee on the finish, so long as the doors are treated and maintained as instructed. |
