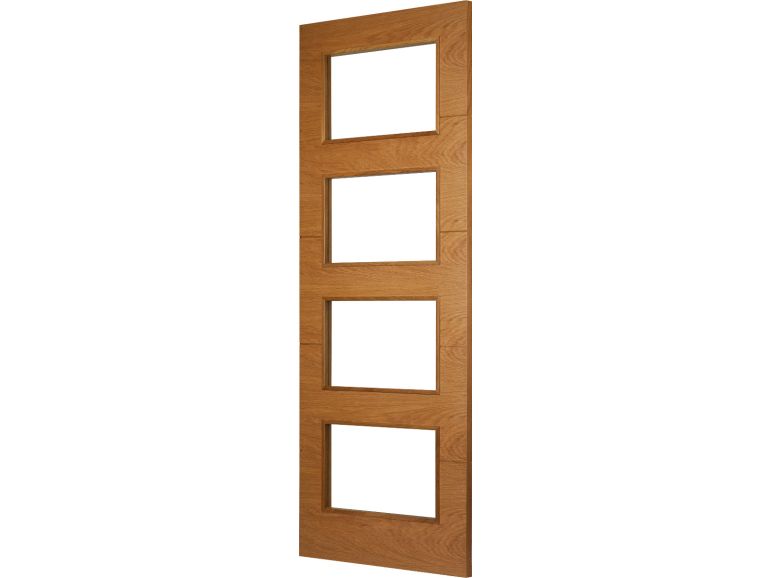

Orta K8514 Oak 4-Light Fire Door (FD30 - Made to Measure)
POPULAR INTERNAL DOOR SIZES
Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
1981 x 381 | 6'6" x 1'3" | 78" x 15" |
1981 x 457 | 6'6" x 1'6" | 78" x 18" |
1981 x 533 | 6'6" x 1'9" | 78" x 21" |
1981 x 610 | 6'6" x 2'0" | 78" x 24" |
1981 x 686 | 6'6" x 2'3" | 78" x 27" |
1981 x 711 | 6'6" x 2'4" | 78" x 28" |
1981 x 762 | 6'6" x 2'6" | 78" x 30" |
2032 x 813 | 6'8" x 2'8" | 80" x 32" |
1981 x 838 | 6'6" x 2'9" | 78" x 33" |
1981 x 864 | 6'6" x 2'10" | 78" x 34" |
1981 x 915 | 6'6" x 3'10" | 78" x 36" |
2040 x 526 | 6'8 1/4" x 1'8 11/15" | 80" 1/4 x 20" 11/16 |
2040 x 626 | 6'8 1/4" x 2'0 1/8" | 80" 1/4 x 24" 5/8 |
2040 x 726 | 6'8 1/4" x 2'4 3/8" | 80" 1/4 x 28" 5/8 |
2040 x 826 | 6'8 1/4" x 2'8 1/2" | 80" 1/4 x 32" 1/2 |
2040 x 926 | 6'8 1/4" x 3'0 1/16" | 80" 1/4 x 36" 7/15 |
POPULAR PAIR OF DOOR SIZES
Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
1981 x 1067 | 6'6" x 3'6" | 78" x 42" |
1981 x 1168 | 6'6" x 3'10" | 78" x 46" |
1981 x 1220 | 6'6" x 4'0" | 78" x 48" |
1981 x 1372 | 6'6" x 4'6" | 78" x 54" |
1981 x 1524 | 6'6" x 5'0" | 78" x 60" |
The Orta K8514 Oak fire door is designed with a contemporary look in mind. With 4 V-grooves in to solid Oak stretching across the entire width of the door, it gives you a visual look like no other and gives the appearance of being wider than it really is. The 4-light glazing design offers the perfect solution to let you bring light into your room, without compromising on style. It is factory glazed with clear flat fire rated glazing. The K8514 Oak fire door design is placed within our Todd Doors range allowing us to offer a strikingly designed door at a very competitive price. The Orta K8514 Oak fire door is constructed using high quality real Oak veneers over an engineered solid core and then pre factory finished in a satin lacquer.
- Our Orta Oak range is constructed using American White Oak veneer and solid, genuine real oak lippings.
- Fully factory finished in clear satin lacquer with colour matched v-groove detail.
- Featuring horizontal grooves giving the illusion of a wider door.
- Our Orta Oak doors are fitted with clear flat fire glass.
- Fire rated to ensure at least 30 minutes protection (FD30) when fitted in accordance with the Global Fire Resistance Assessment.
- If it's choice you're after, then you'll love our stylish and affordable Todd Doors range of doors.
- The Orta Oak range is available in standard, glazed, fire rated, and fire rated glazed versions.
- Can be made up to a maximum of 2250 x 926mm.
- Leadtime is typically 5 months from final factory sign-off.
Product Code | KFC8514_OAKPGL |
---|---|
Fire Door | Yes - FD30 |
Door Thickness | 44mm - FD30 |
Door Finish | Pre-Finished |
Door Face | Lacquered Oak |
Door Style | Contemporary |
Door Type | Grooved |
Glass Type | Clear Flat Fire Rated Glass |
Glazing Style | Full Glazed, Clear Glass |
Door Features | Raised Hockey Stick Glazing Bead |
Door Construction | Fire Rated Super Heavyweight Solid Core |
Hinge Requirement | 3 no. 4" Hinges |
Average Weight | 38 KG (Based on 1981 x 762mm) |
Door Location | Internal Use Only |
Availability | Made to Order: 5 Months |
Product Brand | Todd Doors |
Trimming Allowance | To maintain the integrity of this door you may trim up to 3mm off each edge, up to 3mm off the top and up to 3mm off the bottom*. Trimming beyond this amount will invalidate this doors fire certification. |
Trimming Note | In trimming any part of this door you will need to re-seal the exposed edges. In trimming the height the core may become exposed. Please contact a Door Expert about the appropriate finishes available for this door. |
Guarantee | All internal doors are supplied with a Lifetime Guarantee against defects in materials and workmanship along with a one-year guarantee on the finish, so long as the doors are treated and maintained as instructed. |
