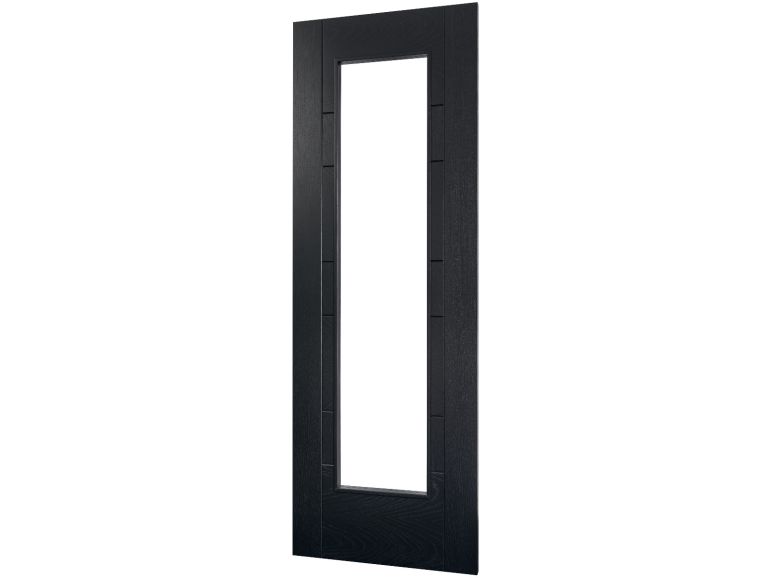

Edmonton Black 1-Light Fire Door (FD30)
The Edmonton has a rich black painted finish contrasting panels, where the natural Oak grain runs in opposite directions, paired with v-grooves to create a modern 7-panel effect.
This glazed... Read More
Fire
Pre-finished
Bespoke sizes
✕
POPULAR INTERNAL DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 381 | 6'6" x 1'3" | 78" x 15" |
| 1981 x 457 | 6'6" x 1'6" | 78" x 18" |
| 1981 x 533 | 6'6" x 1'9" | 78" x 21" |
| 1981 x 610 | 6'6" x 2'0" | 78" x 24" |
| 1981 x 686 | 6'6" x 2'3" | 78" x 27" |
| 1981 x 711 | 6'6" x 2'4" | 78" x 28" |
| 1981 x 762 | 6'6" x 2'6" | 78" x 30" |
| 2032 x 813 | 6'8" x 2'8" | 80" x 32" |
| 1981 x 838 | 6'6" x 2'9" | 78" x 33" |
| 1981 x 864 | 6'6" x 2'10" | 78" x 34" |
| 1981 x 915 | 6'6" x 3'10" | 78" x 36" |
| 2040 x 526 | 6'8 1/4" x 1'8 11/15" | 80" 1/4 x 20" 11/16 |
| 2040 x 626 | 6'8 1/4" x 2'0 1/8" | 80" 1/4 x 24" 5/8 |
| 2040 x 726 | 6'8 1/4" x 2'4 3/8" | 80" 1/4 x 28" 5/8 |
| 2040 x 826 | 6'8 1/4" x 2'8 1/2" | 80" 1/4 x 32" 1/2 |
| 2040 x 926 | 6'8 1/4" x 3'0 1/16" | 80" 1/4 x 36" 7/15 |
POPULAR PAIR OF DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 1067 | 6'6" x 3'6" | 78" x 42" |
| 1981 x 1168 | 6'6" x 3'10" | 78" x 46" |
| 1981 x 1220 | 6'6" x 4'0" | 78" x 48" |
| 1981 x 1372 | 6'6" x 4'6" | 78" x 54" |
| 1981 x 1524 | 6'6" x 5'0" | 78" x 60" |
Handles (Optional)
Availablity : In Stock
Available Qty : 722
Available Qty : 722
Availablity : In Stock
Available Qty : 846
Available Qty : 846
Availablity : In Stock
Available Qty : 130
Available Qty : 130
Hinges (Optional)
Locks & Latches (Optional)
Bath Turns (Optional)
Escutcheons (Optional)
Additional Accessories (Optional)
Availablity : In Stock
Available Qty : 136
Available Qty : 136
Availablity : In Stock
Available Qty : 219
Available Qty : 219
Other products in this range
- The Edmonton has a rich black painted finish contrasting panels, where the natural Oak grain runs in opposite directions, paired with v-grooves to create a modern 7-panel effect.
- This glazed version features a large single pane, fitted with clear flat toughened glass.
- Forming part of our Charles Todd range where all doors are made using only the finest sustainably sourced timber elegantly crafted in both cutting edge contemporary designs or well-loved traditional styles.
- Our Edmonton is constructed using real oak veneer over a solid core, giving a weighty and substantial feel.
- We are confident about the quality of our doors which is why we offer a lifetime guarantee on all of our internal doors.
- Fire rated to ensure at least 30 minutes protection (FD30) when fitted in accordance with the Global Fire Resistance Assessment.
- Can't find the size you are looking for? Edmonton Black 1-Light Fire Door (FD30 - Made to Measure) can be made to the size that you require up to a maximum of 2250 x 926mm.
| Fire Door | Yes - FD30 |
|---|---|
| Door Thickness | 44mm - FD30 |
| Door Finish | Pre-Finished |
| Door Face | Painted Oak |
| Door Style | Contemporary, Ladder |
| Door Type | Grooved |
| Glass Type | Clear Flat Fire Rated Glass |
| Glazing Style | Full Glazed, Clear Glass |
| Door Features | Raised Hockey Stick Glazing Bead |
| Door Construction | Fire Rated Super Heavyweight Solid Core |
| Hinge Requirement | 3 no. 4" Hinges |
| Average Weight | 34 KG (Based on 1981 x 762mm) |
| Door Location | Internal Use Only |
| Availability | Typically in Stock |
| Product Brand | Charles Todd |
| Trimming Allowance | To maintain the integrity of this door you may trim up to 3mm off each edge, up to 3mm off the top and up to 3mm off the bottom*. Trimming beyond this amount will invalidate this doors fire certification. |
| Trimming Note | In trimming any part of this door you will need to re-seal the exposed edges. In trimming the height the core may become exposed. Please contact a Door Expert about the appropriate finishes available for this door. |
| Guarantee | All internal doors are supplied with a Lifetime Guarantee against defects in materials and workmanship along with a one-year guarantee on the finish, so long as the doors are treated and maintained as instructed. |
