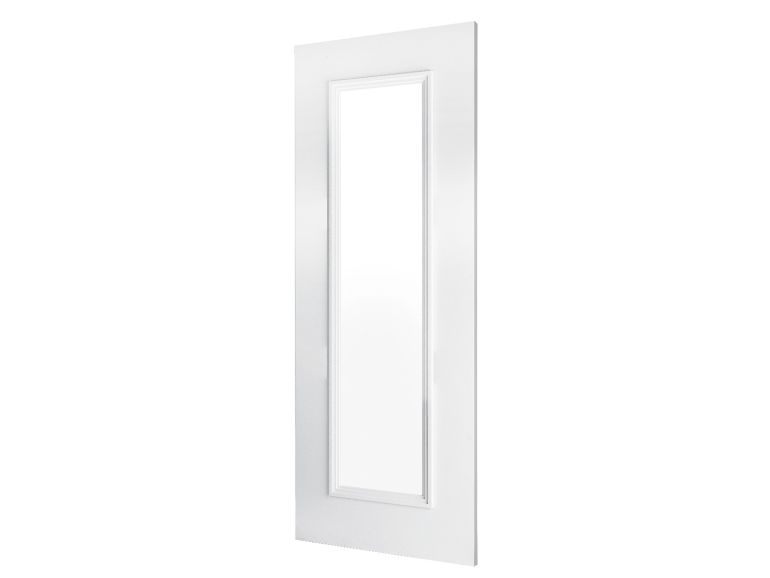

Chelsea P10 1-Light Fire Door (FD30 - Bespoke)
Forming part of our Charles Todd range that offers a truly bespoke service. All of our Charles Todd doors are made using only the finest sustainably sourced timber elegantly crafted in both cutting... Read More
Primed
Fire
Bespoke sizes
Paintable by us
✕
POPULAR INTERNAL DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 381 | 6'6" x 1'3" | 78" x 15" |
| 1981 x 457 | 6'6" x 1'6" | 78" x 18" |
| 1981 x 533 | 6'6" x 1'9" | 78" x 21" |
| 1981 x 610 | 6'6" x 2'0" | 78" x 24" |
| 1981 x 686 | 6'6" x 2'3" | 78" x 27" |
| 1981 x 711 | 6'6" x 2'4" | 78" x 28" |
| 1981 x 762 | 6'6" x 2'6" | 78" x 30" |
| 2032 x 813 | 6'8" x 2'8" | 80" x 32" |
| 1981 x 838 | 6'6" x 2'9" | 78" x 33" |
| 1981 x 864 | 6'6" x 2'10" | 78" x 34" |
| 1981 x 915 | 6'6" x 3'10" | 78" x 36" |
| 2040 x 526 | 6'8 1/4" x 1'8 11/15" | 80" 1/4 x 20" 11/16 |
| 2040 x 626 | 6'8 1/4" x 2'0 1/8" | 80" 1/4 x 24" 5/8 |
| 2040 x 726 | 6'8 1/4" x 2'4 3/8" | 80" 1/4 x 28" 5/8 |
| 2040 x 826 | 6'8 1/4" x 2'8 1/2" | 80" 1/4 x 32" 1/2 |
| 2040 x 926 | 6'8 1/4" x 3'0 1/16" | 80" 1/4 x 36" 7/15 |
POPULAR PAIR OF DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 1067 | 6'6" x 3'6" | 78" x 42" |
| 1981 x 1168 | 6'6" x 3'10" | 78" x 46" |
| 1981 x 1220 | 6'6" x 4'0" | 78" x 48" |
| 1981 x 1372 | 6'6" x 4'6" | 78" x 54" |
| 1981 x 1524 | 6'6" x 5'0" | 78" x 60" |
Handles (Optional)
Availablity : In Stock
Available Qty : 442
Available Qty : 442
Availablity : In Stock
Available Qty : 244
Available Qty : 244
Availablity : In Stock
Available Qty : 256
Available Qty : 256
Availablity : In Stock
Available Qty : 329
Available Qty : 329
Hinges (Optional)
Availablity : In Stock
Available Qty : 885
Available Qty : 885
Availablity : In Stock
Available Qty : 2728
Available Qty : 2728
Locks & Latches (Optional)
Bath Turns (Optional)
Escutcheons (Optional)
Availablity : In Stock
Available Qty : 58
Available Qty : 58
Availablity : In Stock
Available Qty : 591
Available Qty : 591
Additional Accessories (Optional)
Availablity : In Stock
Available Qty : 151
Available Qty : 151
Availablity : In Stock
Available Qty : 222
Available Qty : 222
Other products in this range
Forming part of our Charles Todd range that offers a truly bespoke service. All of our Charles Todd doors are made using only the finest sustainably sourced timber elegantly crafted in both cutting edge contemporary designs or well-loved traditional styles.
- The Chelsea range is made entirely to order, all doors feature flat panels with raised stepped mouldings in varying panel configurations.
- Supplied primed, ready for you to add your own original stamp with the colour of your choice.
- Constructed using a solid core, giving a heavy and substantial feel.
- Our Chelsea doors are fitted with clear flat fire glass.
- Fire rated to ensure at least 30 minutes protection (FD30) when fitted in accordance with the Global Fire Resistance Assessment.
- Our doors come expertly packaged and are delivered by our own team, ensuring they are properly protected from damage.
- We are confident about the quality of our doors which is why we offer a lifetime guarantee on all of our internal doors.
| Product Code | CSFCCHE1P1L_WHIPG |
|---|---|
| Fire Door | Yes - FD30 |
| Door Thickness | 44mm - FD30 |
| Door Finish | Primed for on-site Finishing |
| Door Face | Smooth Primed |
| Door Style | Traditional |
| Door Type | Panelled |
| Glass Type | Clear Flat Fire Rated Glass |
| Glazing Style | Full Glazed, Clear Glass |
| Door Features | Raised Decorative Stepped Glazing Bead |
| Door Construction | Fire Rated Super Heavyweight Solid Core |
| Hinge Requirement | 3 no. 4" Hinges |
| Door Location | Internal Use Only |
| Availability | Made to Order: 3 Months |
| Product Brand | Charles Todd |
| Trimming Allowance | To maintain the integrity of this door you may trim up to 3mm off each edge, up to 3mm off the top and up to 3mm off the bottom*. Trimming beyond this amount will invalidate this doors fire certification. |
| Trimming Note | In trimming any part of this door you will need to re-seal the exposed edges. In trimming the height the core may become exposed. Please contact a Door Expert about the appropriate finishes available for this door. |
| Guarantee | All internal doors are supplied with a Lifetime Guarantee against defects in materials and workmanship along with a one-year guarantee on the finish, so long as the doors are treated and maintained as instructed. |
