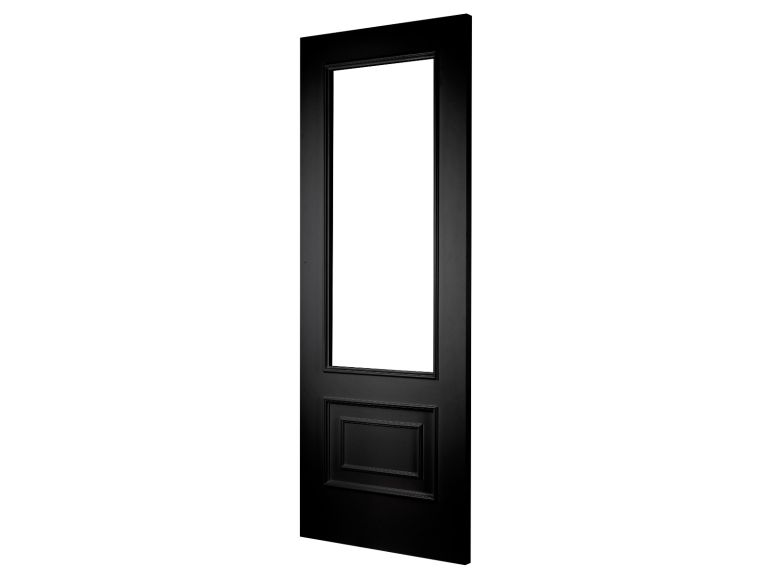

Shelbourne Black 1-Light Fire Door (FD30 - Bespoke)
Forming part of our Charles Todd range that offers a truly bespoke service. All of our Charles Todd doors are made using only the finest sustainably sourced timber elegantly crafted in both cutting... Read More
Fire
Pre-finished
Bespoke sizes
Colour:
-
Dark Oak -
Oak Pre-Finished -
Primed
✕
POPULAR INTERNAL DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 381 | 6'6" x 1'3" | 78" x 15" |
| 1981 x 457 | 6'6" x 1'6" | 78" x 18" |
| 1981 x 533 | 6'6" x 1'9" | 78" x 21" |
| 1981 x 610 | 6'6" x 2'0" | 78" x 24" |
| 1981 x 686 | 6'6" x 2'3" | 78" x 27" |
| 1981 x 711 | 6'6" x 2'4" | 78" x 28" |
| 1981 x 762 | 6'6" x 2'6" | 78" x 30" |
| 2032 x 813 | 6'8" x 2'8" | 80" x 32" |
| 1981 x 838 | 6'6" x 2'9" | 78" x 33" |
| 1981 x 864 | 6'6" x 2'10" | 78" x 34" |
| 1981 x 915 | 6'6" x 3'10" | 78" x 36" |
| 2040 x 526 | 6'8 1/4" x 1'8 11/15" | 80" 1/4 x 20" 11/16 |
| 2040 x 626 | 6'8 1/4" x 2'0 1/8" | 80" 1/4 x 24" 5/8 |
| 2040 x 726 | 6'8 1/4" x 2'4 3/8" | 80" 1/4 x 28" 5/8 |
| 2040 x 826 | 6'8 1/4" x 2'8 1/2" | 80" 1/4 x 32" 1/2 |
| 2040 x 926 | 6'8 1/4" x 3'0 1/16" | 80" 1/4 x 36" 7/15 |
POPULAR PAIR OF DOOR SIZES
| Metric (mm) | Imperial (feet & inches) | Imperial (inches) |
| 1981 x 1067 | 6'6" x 3'6" | 78" x 42" |
| 1981 x 1168 | 6'6" x 3'10" | 78" x 46" |
| 1981 x 1220 | 6'6" x 4'0" | 78" x 48" |
| 1981 x 1372 | 6'6" x 4'6" | 78" x 54" |
| 1981 x 1524 | 6'6" x 5'0" | 78" x 60" |
Other products in this range
Forming part of our Charles Todd range that offers a truly bespoke service. All of our Charles Todd doors are made using only the finest sustainably sourced timber elegantly crafted in both cutting edge contemporary designs or well-loved traditional styles.
- The Shelbourne range is made entirely to order, featuring large decorative raised mouldings placed to create a classic 3-panel design that offers a truly grand, imposing style.
- Constructed using a solid core, giving a heavy and substantial feel.
- Supplied with a smooth black painted finish which gives a sleek and stylish look to your door.
- Fire rated to ensure at least 30 minutes protection (FD30) when fitted in accordance with the Global Fire Resistance Assessment.
- This bespoke door can be made to a max. height of 2400mm and max. width of 1000mm. For pricing, please contact our door experts in-store, on Live Chat or call 0800 633 5050.
- Our Shelbourne doors are fitted with clear flat fire glass.
- Our doors come expertly packaged and are delivered by our own team, ensuring they are properly protected from damage.
| Product Code | CSFCSHE1L_BLKPG |
|---|---|
| Fire Door | Yes - FD30 |
| Door Thickness | 44mm - FD30 |
| Door Finish | Pre-Finished |
| Door Face | Smooth Painted |
| Door Style | Traditional |
| Door Type | Panelled |
| Glass Type | Clear Flat Fire Rated Glass |
| Glazing Style | Half Glazed, Clear Glass |
| Door Features | Raised Panel Mould with Recessed Flat Panel & Inset Moulding Bead & Matching Glazing Bead |
| Door Construction | Fire Rated Super Heavyweight Solid Core |
| Hinge Requirement | 3 no. 4" Hinges |
| Door Location | Internal Use Only |
| Availability | Made to Order: 3 Months |
| Product Brand | Charles Todd |
| Trimming Allowance | To maintain the integrity of this door you may trim up to 3mm off each edge, up to 3mm off the top and up to 3mm off the bottom*. Trimming beyond this amount will invalidate this doors fire certification. |
| Trimming Note | In trimming any part of this door you will need to re-seal the exposed edges. In trimming the height the core may become exposed. Please contact a Door Expert about the appropriate finishes available for this door. |
| Guarantee | All internal doors are supplied with a Lifetime Guarantee against defects in materials and workmanship along with a one-year guarantee on the finish, so long as the doors are treated and maintained as instructed. |
